Glass Cartridges

Designed for compatibility with pen injectors, auto-injectors and other drug-delivery systems, KAISHA Pharma cartridges combine controlled geometry, consistent dimensional characteristics and high-quality glass surfaces to support reliable filling, assembly and administration.

HELIXCartridges™

From Glass Forming
to Final Control

From glass forming to final control.

A cartridge is more than a formed glass container. Every stage of its manufacture influences its dimensional consistency, surface quality and suitability for pharmaceutical use.

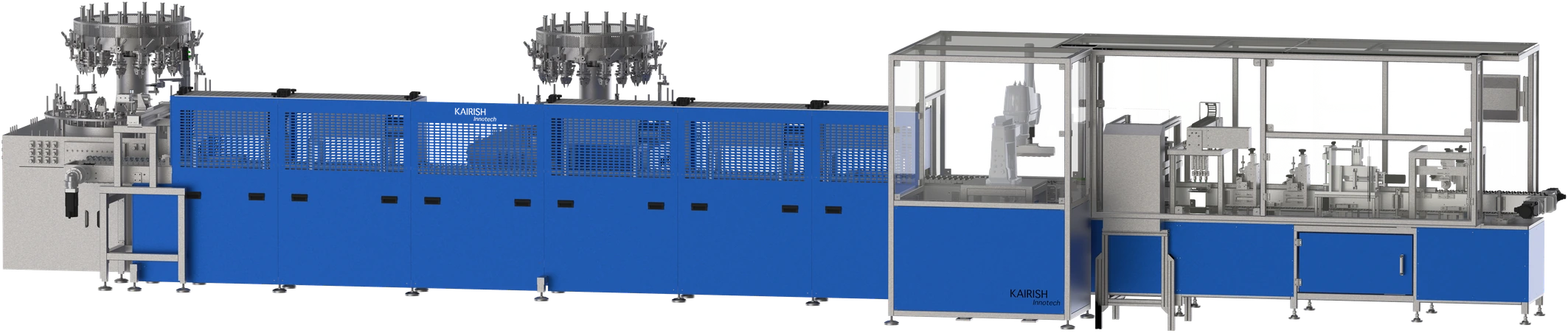

KAISHA Pharma glass cartridge manufacturing line — forming, annealing, inspection, surface treatment, finishing, final inspection and packaging
  1. Glass Forming
  2. Annealing
  3. Inspection
  4. Surface Treatment
  5. Finishing
  6. Final Inspection
  7. Packaging

From glass colour and surface
treatment

to functional
geometry and

identification,
cartridge configurations
can
be tailored to the requirements
of the
drug and filling process.

One Cartridge.
Multiple
Possibilities.

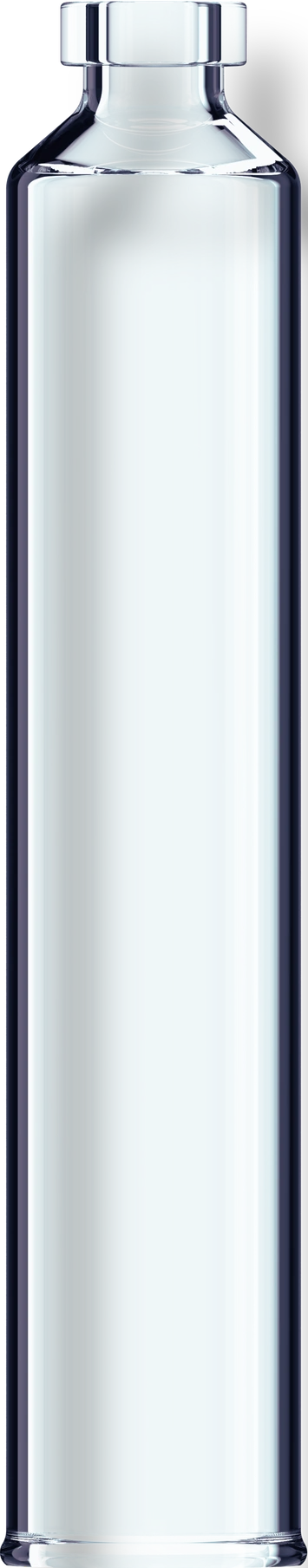

Clear Glass

Suitable for applications where visual inspection of the contents is important.

Standard

Reliable performance for established applications.

Break-Resistant

Added protection where failure isn't an option.

Clear glass cartridge Amber glass cartridge

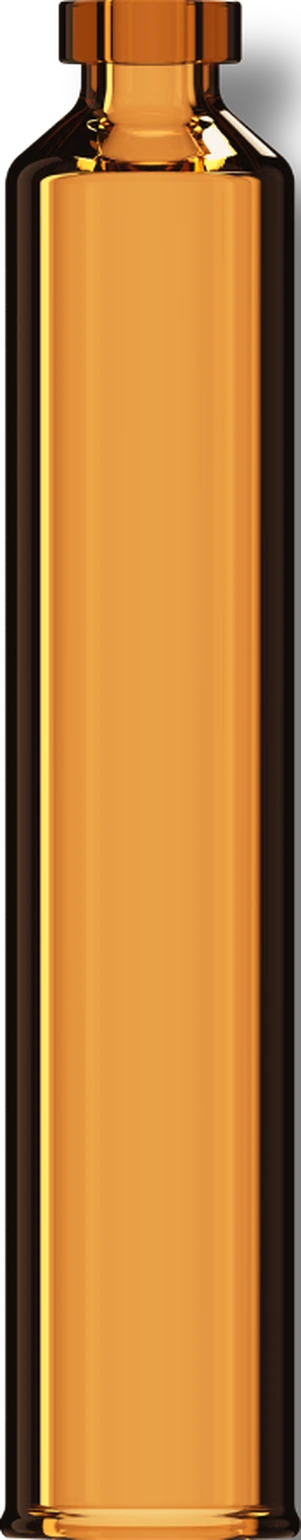

Amber Glass

Provides light protection for photosensitive formulations.

High-Speed

Ideal for:

  • High-speed filling
  • Pen systems
  • Automated processing

Double-Chamber

A two-chamber configuration designed to keep components separated until reconstitution, supporting combinations such as:

  • Liquid + Liquid
  • Liquid + Powder
  • Liquid + Lyophilised formulation

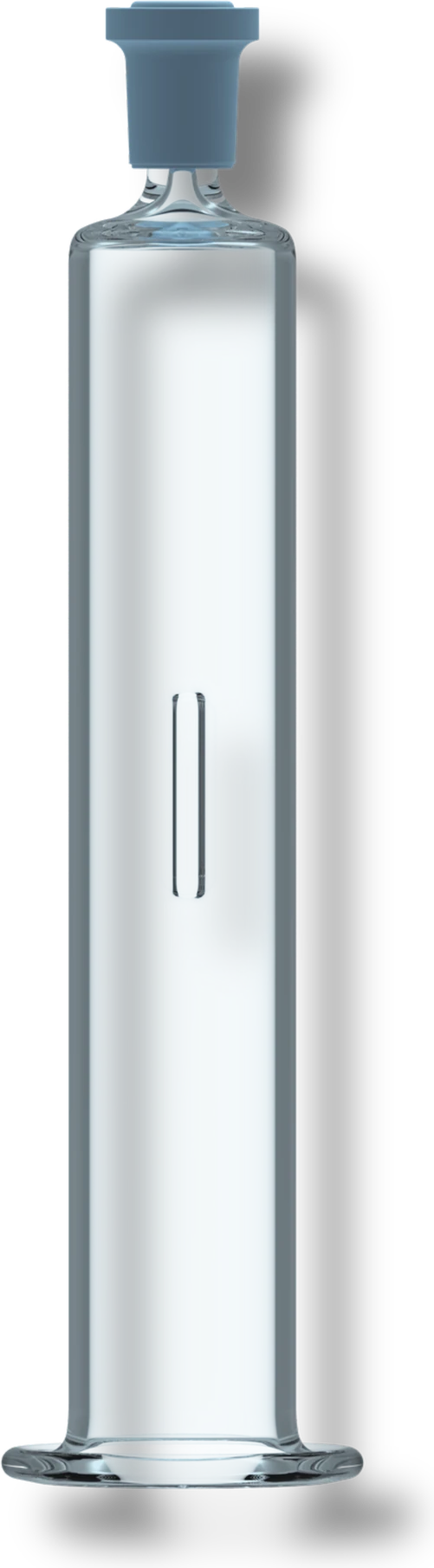

  • Inner Diameter

    Controlled geometry supporting consistent dosing and device performance.

  • Neck Geometry

    Designed around closure and device-interface requirements.

  • Flange / Collar

    Controlled geometry for reliable device integration.

  • Surface Quality

    Controlled glass surface characteristics supporting processing and inspection.

  • Dimensional Consistency

    Critical dimensions controlled throughout manufacturing.

From 0.5mL to 20mL

  1. 0.5mL
  2. 1mL
  3. 1.5mL
  4. 2mL
  5. 3mL
  6. 5mL
  7. 10mL
  8. 20mL

When glass is readyfor the next step.

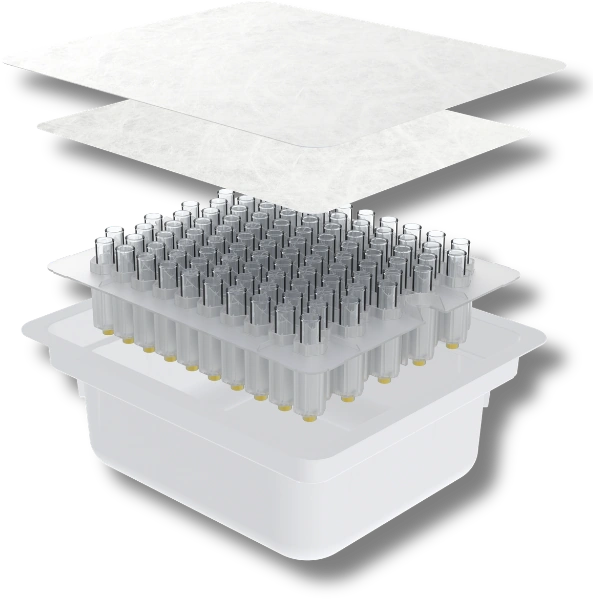

Exploded view of a KAISHA Pharma cartridge nest and tub assembly: Tyvek lid, secondary sheet, cartridge nest and tub.

From conventional bulk glass to sterile,
ready-to-use configurations, KAISHA Pharma
offers solutions designed around the
requirements of modern filling operations.

Nest & Tub · Honeycomb Tray · Glass-to-Glass

Explore Sterile Cartridges
